SouthAfrica UHPC Wear protection lining of a BF Top Gas Cleaning system

BF Top Gas Cleaning

The Paul Wurth gas cleaning system for the Newcastle Steel plant blast furnace was one of several Paul Wurth gas cleaning systems we supplied with UHPC wear protection complete the wear protection. The installation was carried out by a local installation company.

We installed the anchors directly at the steel construction company. The UHPC wear protection lining was then lined on site at the steel mill in the installed condition. The total lining area was approximately 400 sqm. The layer thickness was specified by the plant builder from 25 mm to 40 mm

depending on the area in the cyclone.

UHPC Mortar 2000 HT was specified by our customer as the wear protection material. UHPC Mortar 2000 HT is enormously wear resistant even at continuous temperatures up to 1200°C. The cyclone should have a normal average operating temperature of 400 - 500°C.

However, it is possible that hot gases up to 1000°C may enter the cyclone uncontrolled from blast furnace.



The planned service life is at least 10 years. During these 10 years the blast furnace will not be stopped

and therefore repair of the cyclone will be possible only under very difficult conditions.

WPE DK International

Phone: 0049 176 601 73146
E-mail: info@wpe-dk.dk
Homepage: www.wpe-dk.com

UHPC HT lined Blades /guide vanes for a Paul Wurth cyclone in a steel plant

Once again we supplied blades / vanes for a Paul Wurth dedusting cyclone. Over the last years we have manufactured and delivered more than 210 blades / vanes of different sizes. We delivered for new projects or for spare parts supply.
The blades are lined on both sides with 25 mm thick UHPC HT (high temperature resistant UHPC).

Each delivery is extensively tested by us.

It has been proven over the years that the blades manufactured by us can withstand the maximum loads in a blast furnace dedusting for years.

WPE DK International

Phone: 0049 176 601 73146
E-mail: info@wpe-dk.dk
Homepage: www.wpe-dk.com

Companies which used UHPC Wear Protection in the last 25 years



We are always asked who has been used UHPC
Wear protection for the past 25 years. WPE DK our UHPC wear protection specialist, took the task to compile a list of companies who used UHPC as wear protection during these years.

The list includes plant system supplier and plant operators in
worldwide. The list should give an impression of where
UHPC is already standard as wear protection everywhere. In
In many cases, plant operators have the UHPC material
installed by own fitters.

Here is the list:
The company names can change over the years and some
companies probably have merged with other companies.

A Tech Anlagentechnik GmbH &Co KG, Austria        LOESCHE GmbH

Aalborg Portland Cement A/S        TASEK Cement, Malaysia       Al Bijjar, UAE

Nigeria Cement        Allgaier Process Technology GmbH        Thung Song, South Korea

Mikropul GmbH        California Cement, USA        Moxba NL



Aumund Fördertechnik GmbH            OMYA, Austria



MULTOTEC, South Africa        Aurubis AG        Nohma, Italy    Engineering Dobersek GmbH

BES Brandenburger Elektrostahlwerke GmbH        Oschatz GmbH        Babcock Borsig Service GmbH

ÖMAG  GmbH, Austria               Babcock Borsig Steinmüller GmbH

Phoenix, Australia



Balke Dürr  GmbH        Pilkington GmbH        Bartin Cimento, Turkey        Pioneer Cement, UAE

BASF Antwerpen N.V. , Belgium       Vattenfall Europe Generation AG        Austria Tec S.A., Mexiko

Polysius AG            Bayer Leverkusen        RWE        British Steel



                                  JSW Steel Limited India



Binder + Co AG, Austria        Salzgitter Flachstahl GmbH                       Bio Bio Cimento



   Scheuch GmbH                   Paul Wurth, Luxembourg

Italcimenti, Italy      Burmeister Wain Energy a/s, Denmark       Votorantim, Brazil            Schott AG

Cemtec Cement & Mining Technology GmbH        Blue Circle, GB        Siam Cement



Asia Cement



CEMEX Cement plants        SMS GmbH        Christian Pfeiffer GmbH



          Titan Cement, Greek            Huyndai Steel, SouthKorea



STAG Austria        Claudius Peters Project GmbH                Colacem, Italy



      SSAB, Sweden



Cima Perlis, Malaysia        Cementos Portland Valderrivas    Coperion GmbH

ThyssenKrupp India        KHD GmbH        Shree Cement, India                    NUH Cimento Turkey

Cementir Holding, Italy        TPI Polene, Thailand        DESI Process    voestalpine Steel, Austria

ThyssenKrupp Steel AG        Wacker Chemie AG



E.S.C.H. GmbH                E. Schwenk Ciment

Rautaruuki, Finland        Emscher Aufbereitung GmbH                        EON Power plants        LKAB, Sweden

 Posco Steel SouthKorea

Eternit GmbH        Lucky Cement, Taiwan        FISIA Babcock GmbH



                                                 FLS Möller GmbH

FLS Pfister GmbH        FLSmidth, Denmark        ALSTOM Power                 Gebr. Pfeiffer SA

Heidelberger Cement Cement plants



HITACHI Power Europe GmbH

Hoffmeier Industrieanlagen GmbH        HOLCIM Cement Plants                         IBAU Hamburg mbH

IKN GmbH        Intensiv Filter GmbH & Co KG        Kali+Salz AG Werke

Krupp Fördertechnik GmbH        Küttner GmbH & Co KG                           Lafarge Cement plants

WPE DK International

Phone: 0049 176 601 73146
E-mail: ber@wpe-dk.dk
Homepage: www.wpe-dk.com

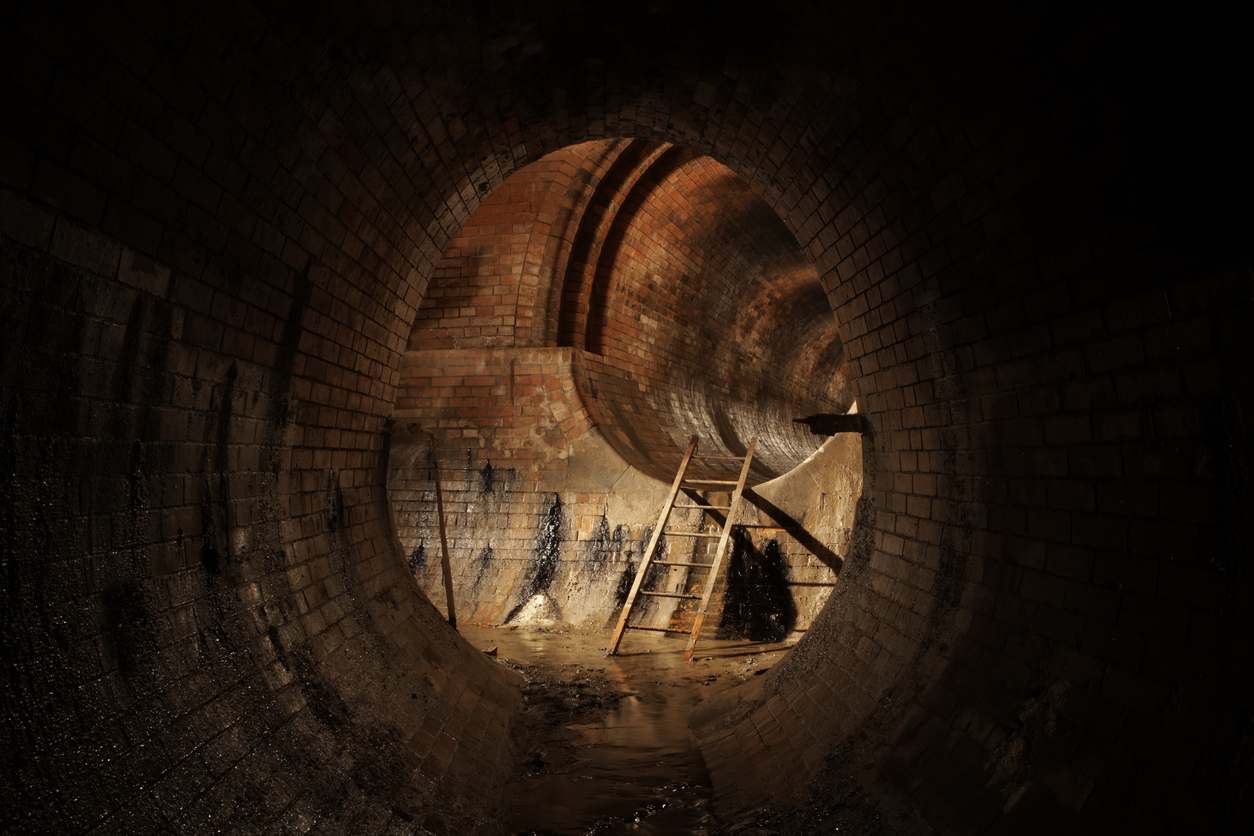

New build and repair of sewage treatment plants and sewers with UHPC concrete

Sewage treatment plants and sewers are exposed
to a permanent chemical and mechanical attack
by sewage from households and industry. Due
to the changing climate conditions and the resulting
extreme rain or flood masses, the systems and
channels are extremely stressed and damage that
their function is no longer guaranteed.

A material with high resistance to chemical and
mechanical attacks is necessary for the maintenance
of these systems.
This material should also be able to be processed

flexibly on site and should not require any complex
machinery.

Damage causes in a sewage treatment plant
- due to mechanical wear
- through frost and de-icing salt
- due to chemical attacks or solvents
- due to concrete corrosion in closed systems

UHPC Ultra High Performance Concrete
UHPC are special concrete products with a minimum
compressive strength of 130 MPa and a water/cement
ratio of less than 0.2.UHPC products can be used very
well for the rehabilitation of concrete - and steel structures.
UHPC products can increase to be rehabilitated
construction next to the corrosion protection even
with admixture of ceramic aggregates the static
bearing capacity.

Benefits of UHPC
- Easy installation as spray, mortar, cast
- Very high corrosion resistance
- Extremely wear-resistant
- Extreme low to no carbonation
- Usable at very high humidity
- Very high impact strength
- Extreme low chloride permeabilit
- Very high resistance to mechanical loads
- No pore formation
- Maritime and port water resistant
- Installation in the water possible
- Duration resistant
- The standard drying time is under 48 hours
- Penetrates into the smallest joints and cracks,
   and closes them permanently
- Joint less installation
- Very good thermal shock resistance
- Absolutely frost and de-icing salt resistant
